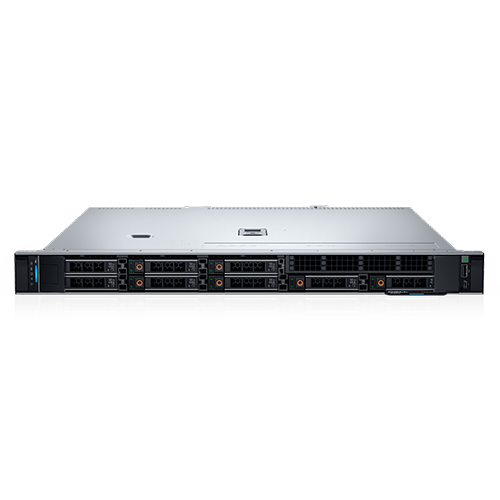

Dell PowerEdge R360
Model: PowerEdge R360
Tech Specs
Processor
One Intel® Xeon® 6300 series processor with up to twelve cores or Intel® Xeon® E-2400 series processor with up to eight cores or one Intel® Pentium® processor with up to two cores
Operating System
Canonical® Ubuntu® Server LTS
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Chipset
Intel® C262 Chipset
Accelerators
NA
Memory
DIMM Speed
Up to 4400 MT/s
Memory Type
ECC UDIMM
Memory Module Slots
4 DDR5 DIMM slots
Maximum RAM
ECC UDIMM 128 GB
Storage
Front Bay
Up to 4 x 3.5’’ SAS/SATA HDD/SSD, max 64 TB
Up to 8 x 2.5’’ SAS/SATA HDD/SSD, max 61.44 TB
Up to 6 x 2.5″ SAS/SATA HDD/SSD+2 x 2.5″ NVMe, max 61.44 TB
Note: NVMe doesn’t support S160 or HW RAID configuration.
Mid Bay
NA
Rear Bay
NA
Storage Controllers
Internal Controllers
HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt, HBA355i front, H355 front, H755 front
External Controllers
HBA355e Adpt
Software RAID
S160
Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs
USB
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured-core server
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server:
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Consoles:
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
CloudIQ for PowerEdge plug in
OpenManage Enterprise Integration for VMware® vCenter™
OpenManage Integration for Microsoft® System Center
OpenManage Integration with Windows Admin Center
Mobility:
OpenManage Mobile
Tools:
Dell Repository Manager
Dell System Update
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
OpenManage Integrations:
BMC Truesight
Microsoft® System Center
OpenManage Integration with ServiceNow
RedHat® Ansible® Modules
Terraform Providers
VMware® vCenter™ and vRealize Operations Manager
Power Supplies
600 W Platinum 100 — 240 VAC or 240 VDC, hot swap redundant
700 W Titanium 200 — 240 VAC or 240 VDC, hot swap redundant
Ports
Network Options
2 x 1GbE LOM
Front Ports
2 x 1GbE LOM
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
Rear Ports
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0
1 x USB 3.2 Gen1
1 x VGA
1 x Serial
Internal Ports
1 x USB 3.2 Gen1
Slots
PCIe
Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile
Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile
One dedicated PCIe x8 slot on the system board for internal PERC
Chassis
Fans
Up to 4 fans
Bezel
Security Bezel
Optional Filter Bezel
Form Factor
1U rack server
Dimensions & Weight
Height
1.68 inches (42.8 mm)
Width
18.97 inches (482.0 mm)
Depth
22.18 inches (563.3 mm)
Weight
29.17 lbs. (13.23 kg) maximum weight
Rack Support
Stab-in sliding rails with optional cable management arm (CMA) for 4-post racks.
Recommended Support
Choose Dell ProSupport Plus or Dell ProSupport for premium hardware and software support. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
