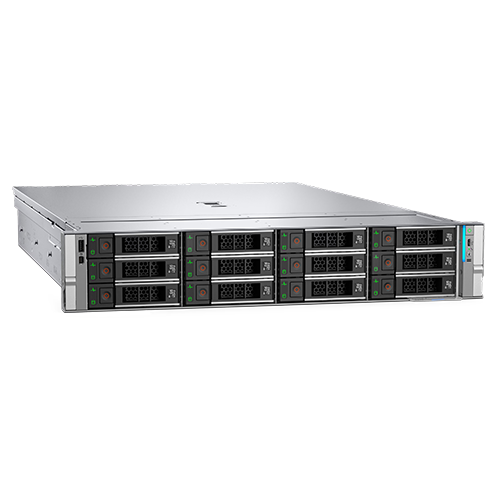

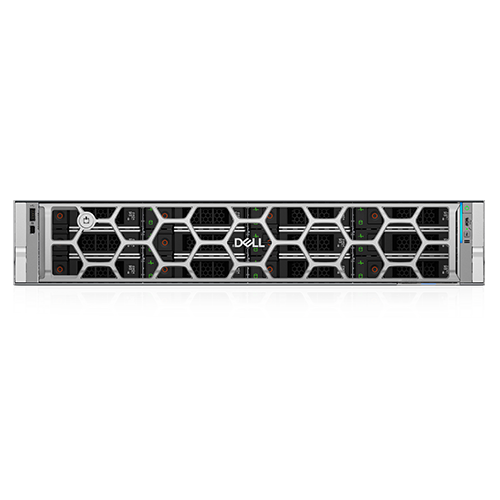

Dell PowerEdge R5715
Model: PowerEdge R5715
Tech Specs
Processor One 5th Generation AMD EPYC 9005 Series processor, up to 32 cores
Form Factor 2U rack server
Memory
DIMM Slots 24 DDR5 DIMM slots
Maximum Memory 1.5 TB (up to 64 GB per DIMM)
Memory Speed Up to 5200 MT/s
Memory Type Registered ECC DDR5 RDIMMs only
Storage
Internal Controllers (RAID) PERC H365i, H965i
Internal Boot BOSS-N1 DC-MHS
External HBAs N/A
Front Drive Bays 12x 3.5-inch SAS/SATA
16x 2.5-inch SAS/SATA
Power
Power Supplies Platinum 800 W, 1100 W
Titanium 800 W, 1100 W
FTR supported
Cooling & Fans
Cooling Options Air cooling
Fans Up to six hot plug fans
Dimensions
Height 86.8 mm (3.41 inches)
Width 482.0 mm (18.97 inches)
Depth (with bezel) 802.4 mm (31.59 inches)
Depth (without bezel) 801.51 mm (31.55 inches)
Bezel Optional metal bezel
Networking & Expansion
OCP Network Options 2x OCP NIC 3.0 (optional), 1GbE, 10GbE, 25GbE
Slot 4: 1×16 Gen5 OCP 3.0
Slot 10: 1×16 Gen5 OCP 3.0
Embedded NIC 1 Gb dedicated BMC Ethernet port
PCIe AIC NIC 100 GbE and 400 GbE; NDR VPI (400 GbE)
PCIe Slots Up to 4 Gen5 PCIe slots (x16 connectors)
Slot 2: 1×16 Gen5 Full Height
Slot 3: 1×16 Gen5 Full Height
Slot 7: 1×16 Gen5 Full Height
Slot 9: 1×16 Gen5 Full Height
GPU Options N/A
Ports
Front Ports 1x USB 2.0 Type-A (optional LCP KVM)
1x USB 2.0 Type-C (HOST/BMC Direct)
1x MiniDisplayPort (optional LCP KVM)
Rear Ports 2x USB 3.1 Type-A
1x VGA
1 Gb dedicated BMC Ethernet port
Internal Ports 1x USB 3.1 Type-A
Management
Embedded Management iDRAC10, iDRAC Direct, iDRAC RESTful API with Redfish, RACADM CLI, Quick Sync 2 wireless module
OpenManage Software OpenManage Enterprise (OME), OME Power Manager, OME Services, OME Update Manager, OME APEX AIOps Observability, OME Integration for VMware vCenter, OME Integration for Microsoft System Center, OpenManage Integration for Windows Admin Center
Tools IPMI
Integrations OpenManage Integrations: Red Hat Ansible Collections, Terraform Providers
Change Management Dell Repository Manager, Dell System Update, Enterprise Catalogs, Server Update Utility (SUU)
Security
Security Features Cryptographically signed firmware, Data at Rest Encryption (SEDs with local or external key mgmt), Secure Boot, Secured Component Verification (hardware integrity check), Secure Erase, Silicon Root of Trust, System Lockdown (requires iDRAC10 Enterprise or Datacenter), TPM 2.0 FIPS/CC-TCG certified, Chassis Intrusion Detection, AMD Secure Encrypted Virtualization (SEV), AMD Secure Memory Encryption (SME)
Operating Systems & Hypervisors
Supported OS / Hypervisors Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
