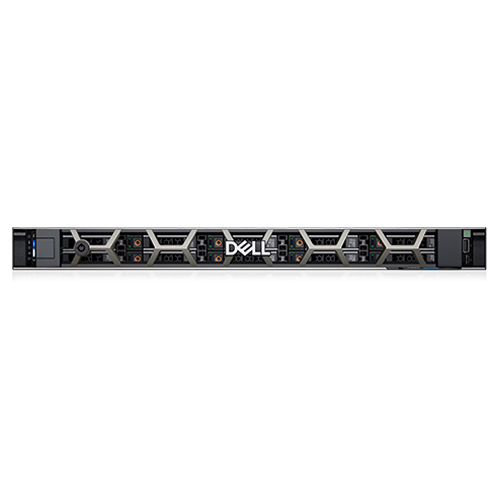

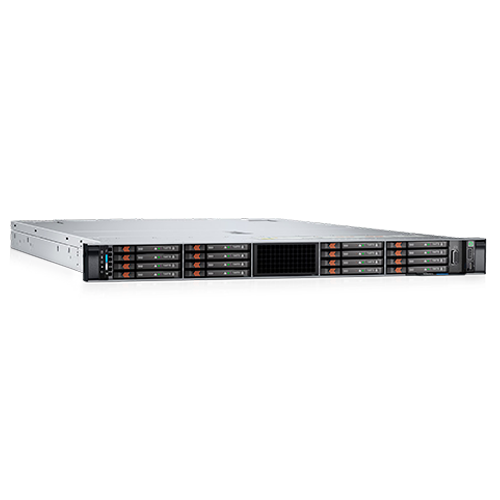

Dell PowerEdge R660
Model: PowerEdge R660
Tech Specs
Processor
Up to 2 x 4th Generation Intel Xeon Scalable processors, with up to 56 cores and optional Intel® QuickAssist Technology
Operating System
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
Chipset
Intel® C741 chipset
Accelerators
Up to 3 x 75 W SW
Memory
DIMM Speed
Up to 5600 MT/s on the 5th Generation Intel® Xeon Scalable processor
Memory Type
RDIMM
Memory Module Slots
32 DDR5 DIMM slots
Maximum RAM
RDIMM 8 TB
Storage
Front Bays
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
Up to 14 x EDSFF E3.S Gen5 NVMe (SSD) max 179.2 TB
Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 204.8 TB
Mid Bay
NA
Rear Bay
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
Up to 2 x EEDSFF E3.S Gen5 NVMe (SSD) max 25.6 TB
Storage Controllers
Internal Controllers
PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
External Controllers
HBA355e, PERC H965e
Software RAID
S160
Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs
USB
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 wireless module
Consoles
CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
iDRAC RESTful API with Redfish
Dell Repository Manager
Dell System Update
Enterprise Catalogs
IPMI
RACADM CLI
OpenManage Integrations
BMC Truesight
Microsoft® System Center
OpenManage Integration with ServiceNow
RedHat® Ansible® Modules
Terraform Providers
VMware® vCenter™ and vRealize Operations Manager
Power Supplies
Power Supplies
1800W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
1400W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
1100W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
1100W LVDC -48 — -60 VDC, hot swap redundant
800W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
700 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant
Fans
Up to 4 sets (dual fan module) fans
Ports
Network Options
2 x 1 GbE LOM card (optional)
1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system.
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA
Rear Ports
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
1 x VGA (optional for Direct Liquid Cooling configuration)
Internal Ports
1 x USB 3.0 (optional)
Slots
PCIe
Up to three PCIe slots:
Slot 1 : 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length
Slot 2 : 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length
Slot 3 : 1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length
Video
1 x VGA
Bezel
Optional LCD bezel or security bezel
Form Factor
1U rack server
Dimensions & Weight
Height
42.8 mm (1.68 inches)
Width
482.0 mm (18.97 inches)
Depth
822.88 mm (32.39 inches) with bezel
809.04 mm (31.85 inches) without bezel
Weight
Max 22.51 kg (49.62 lbs.)
Rack Support
ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks.
ReadyRails static rails for 4-post and 2-post racks.
Note: CMA is not supported in Direct Liquid Cooling configuration.
