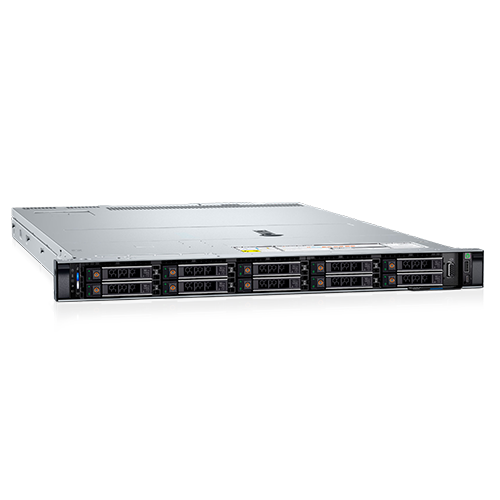

Dell PowerEdge R660xs
Model: PowerEdge R660xs
Tech Specs
Processor
Up to 2 x 5th generation Intel® Xeon® Scalable processors with up to 28 cores and 4th generation Intel® Xeon® Scalable processors with up to 32 cores per processor
Operating System
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® vSAN/ESXi®
Canonical® Ubuntu® Server LTS
Chipset
Intel® C741 Chipset
Memory
DIMM Speed
Up to 5200 MT/s
Memory Type
RDIMM
Memory Module Slots
16 DDR5 DIMM slots
Maximum RAM
1.5 TB
Storage
Front Bay
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 96 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
Rear Bay
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
Storage Controllers
Internal Controllers
PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i
External Controllers
HBA355e
Software RAID
S160
Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs (cold swap)
USB
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 wireless module
Consoles
CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Enterprise Integration for VMware® vCenter™
OpenManage Integration for Microsoft® System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
Dell Repository Manager
Dell System Update
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
OpenManage Integrations
BMC Truesight
Microsoft® System Center
OpenManage Integration with ServiceNow
RedHat® Ansible® Modules
Terraform Providers
VMware® vCenter™ and vRealize Operations Manager
Power Supplies
Power Supplies
1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
1400 W Titanium 100—240 VAC or 240 VDC, hot swap redundant
1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
1100 W LVDC -48 — (-60) VDC, hot swap redundant
800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
600 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
Fans
Standard (STD) fans, High performance SLVR fans or High performance GOLD fans
Up to 7 hot swappable fans
Ports
Network Options
2 x 1GbE LOM card (optional)
1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card can be installed in the system.
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

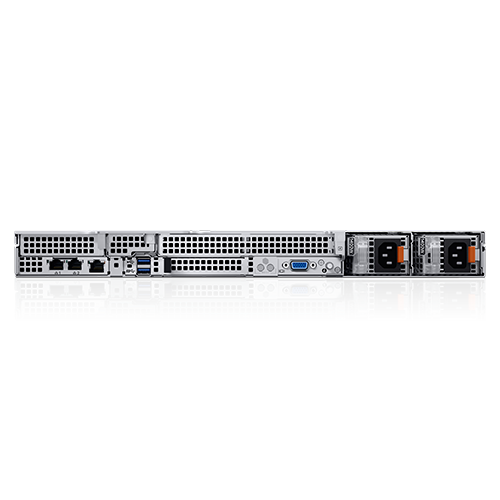

Rear Ports
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
1 x VGA
Internal Ports
1 x USB 3.0 (optional)
Slots
PCIe
1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5)
2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5)
Video
1 x VGA

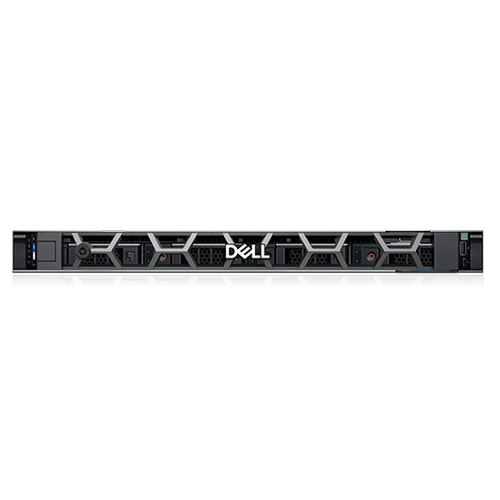

Bezel
Optional LCD bezel or security bezel
Form Factor
1U rack server
Dimensions & Weight
Height
1.68 inches (42.8 mm)
Width
18.97 inches (482 mm)
Depth
28.05 inches (712.95 mm) without bezel
29.85 inches (748.79 mm) with bezel
Weight
55.33 lbs (19.45 Kg)
Rack Support
ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks
Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks
ReadyRails static rails for 4-post and 2-post racks
