Dell PowerEdge R770
Model: PowerEdge R770
Tech Specs
Processor
Two Intel® 6 Processor with up to 144 E- cores or 86 P-cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Microsoft® Windows Server® with Hyper-V (P-Core only)
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware ESXi
Dell NativeEdge OS
Accelerators
Up to 6 x 75 W FHHL or up to 2 x 450 W DWFL
Memory
DIMM Speed
Up to 6400 MT/s
Memory Type
RDIMM
Memory Module Slots
32 DDR5 DIMM slots
Maximum RAM
RDIMM 8 TB
Storage
Front Bay
No backplane configuration
Up to 8 x EDSFF E3.S Gen5 NVMe max 491.52 TB also comes with FIO configuration
Up to 16 x EDSFF E3.S Gen5 NVMe max 983.04 TB also comes with FIO configuration
Up to 32 x EDSFF E3.S Gen5 NVMe max 1966.08 TB
Up to 8 x 2.5 inch SATA/NVMe max 491.52 TB
Up to 8 x 2.5-inch Universal max 491.52 TB
Up to 16 x 2.5 inch SATA max 61.44 TB
Up to 24 x 2.5 inch SATA max 92.16 TB
Up to 16 x 2.5 inch SATA + 8 x 2.5-inch NVME max 552.96 TB
Up to 40 x EDSFF E3.S Gen5 NVMe max 2457.6 TB
Up to 4 x EDSFF E3.S Gen5 NVMe max 245.76 TB on the rear
Storage Controllers
Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs
M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs
USB
Internal controllers
H965i Front DC-MHS, H365i Front DC-MHS, H975i Front DC-MHS
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 2.0 FIPS, CC-TCG certified
Chassis Intrusion Detection
Management
Embedded / At-the-Server
iDRAC
iDRAC Direct
iDRAC RESTful API with Redfish
RACADM CLI
iDRAC Service Module (iSM)
Quick Sync 2 wireless module
NativeEdge Endpoint
NativeEdge Orchestrator
Tools
Dell Repository Manager
Dell System Update
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
Power Supplies
800 W Platinum 100—240 VAC or 240 VDC
1100 W Platinium 100—240 VAC or 240 VDC
1500 W Titanium 100—240 VAC or 240 VDC
1100 W Titanium 100—240 VAC or 240 VDC
3200 W Titanium 200—240 VAC or 240 VDC
800 W Titanium 100—240 VAC or 240 VDC
3200 W 277 VAC and 336 HVDC Titanium
1400 W -48VDC 60mm
1500 W 277 VAC and 336 HVDC Titanium
2400 W Titanium 100—240 VAC or 240 VDC
1800 W HLAC Titanium 200—240 VAC or 240 VDC
Fans
High performance Silver (HPR SLVR) fans/High performance Gold (HPR GOLD) fans
Up to 6 hot swappable fans
Ports
Front Ports
1 x USB 2.0 Type C port
1 x USB 2.0 Type A port (optional)
1 x Mini-DisplayPort (optional)
1 x DB9 Serial port (with front I/O configuration)
1 x Dedicated ethernet port for iDRAC management

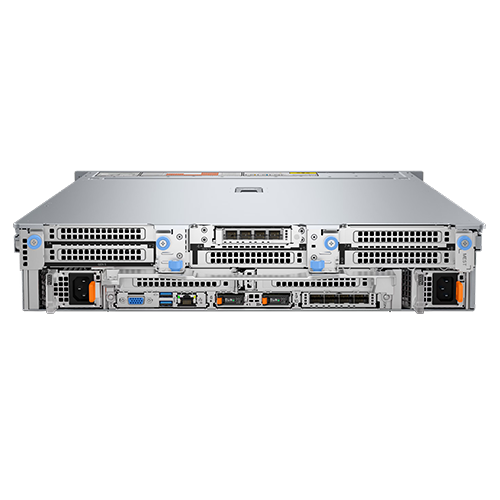

Rear Ports
1 x Dedicated ethernet port for iDRAC management
1 x VGA
2 x USB 3.1 Type A ports
Internal Ports
1 x USB 3.1 Type A port
Slots
PCIe
Up to two PCIe slots ( x16 connectors)
Slot 31 1 x 16 Gen5 Full Height – Half Length or Full Length on front Riser
Slot 36 1 x 16 Gen5 Full Height – Half Length on front Riser
Up to eight PCIe slots (x8 and x16 connectors)
Slot 1 1 x 8 Gen5 Full Height – Half Length
Slot 2 1 x 16 Gen5 Dual Width Full Length or 1 x 8 Gen5 Full Height – Half Length
Slot 3 1 x 16 Gen5 Full Height – Half Length or 1 x 16 Gen5 Low Profile
Slot 4 1 x 16 Gen5 Full Height – Half Length or 1 x 8 Gen5 Full Height – Half Length or 1 x 8 or 1 x 16 OCP 3.0
Slot 5 2 x 16 Gen5 Full Height – Half Length or 1 x 8 Gen5 Full Height – Half Length
Slot 7 1 x 16 Gen5 Full Height – Half Length or 1 x 16 Gen5 Dual Width Full Length or 1 x 8 Gen5 Full Height – Half Length
Slot 8 1 x 16 Gen5 Full Height – Half Length or 1 x 8 Gen5 Full Height – Half Length
Slot 9 1 x 16 Gen5 Full Height – Half Length or 1 x 8 Gen5 Full Height – Half Length or 1 x 16 Low Profile- Half Length
OCP Network options
OCP NIC card 3.0 : 2 slots on the front or 2 slots on the rear
BOSS
Slot 34: one BOSS slot
Slot 6: one BOSS slot
Bezel
Optional security bezel
Form Factor
2U rack server
Dimensions & Weight
Height
86.80 mm (3.42 in.)
Width
482.00 mm (18.97 in.)
Depth (for rear I/O configuration)
802.40 mm (31.59 in.) with bezel
801.51 mm (31.56 in.) without bezel
Depth (for front I/O configuration)
814.52 mm (32.07 in.) without bezel
Note: The front I/O configuration does not support the bezel.
Weight
Max 28.53 kg (62.89 lb)
Rack Support
ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks
Combo (Drop-in/Stab-in) rails with optional CMA and SRB for 4-post racks.
ReadyRails static rails for 4-post and 2-post racks.
Blind Mate Power ReadyRails (static, stab-in) for systems with front I/O configuration
