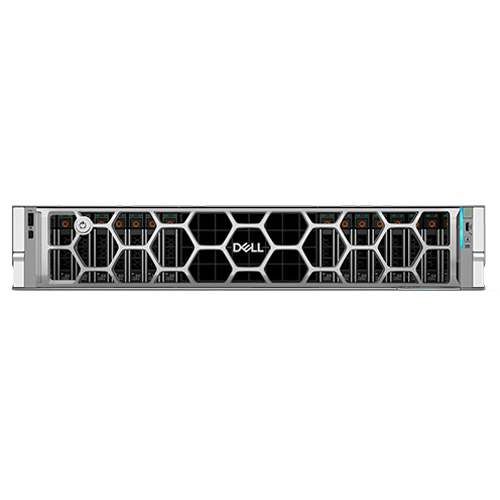

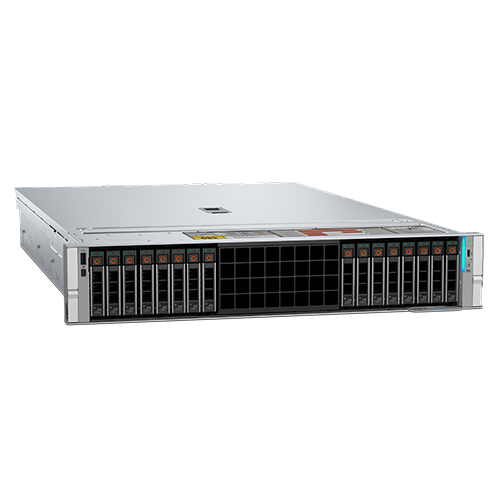

Dell PowerEdge R770AP
Model: PowerEdge R770AP
Tech Specs
Processor
Two Intel® Xeon® 6 6900-series P-core processors with up to 128 cores
Operating System
Canonical Ubuntu Server LTS
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware vSAN / VMware ESXi
Microsoft Windows
Microsoft Windows Server
Microsoft Windows Server Datacenter
Accelerators
N/A
Memory
DIMM Speed
Up to 6400 MT/s
Memory Type
RDIMM
Memory Module Slots
24 DDR5 DIMM slots
Maximum RAM
RDIMM 3 TB
Storage
Front Bay
No backplane configuration
Up to 16 x 2.5-inch G5 x4 NVMe (SSD) max 245.76 TB
Up to 16 x 2.5-inch G5 x2 NVMe (SSD) max 245.76 TB
Up to 32 x EDSFF E3.S Gen5 NVMe (SSD) max 491.52 TB
Storage Controllers
Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs
USB
Internal controllers
PERC H975i Front DC-MHS
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 2.0 FIPS, CC-TCG certified
Chassis Intrusion Detection
Management
Embedded / At-the-Server
iDRAC10
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module (iSM)
Tools
Dell Repository Manager
Dell System Update
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
Power Supplies
1500 W Titanium 100-120 LLAC or 200-240 HLAC, 240 VDC, hot swap redundant
1800 W Titanium 200-240 HLAC, 240 VDC, hot swap redundant
2400 W Titanium 100-120 LLAC or 200-240 HLAC, 240 VDC, hot swap redundant
3200 W Titanium 200-220 HLAC or 220.1-240 HLAC, 240 VDC, hot swap redundant
Fans
Up to 6 hot swappable fans
Ports
Front Ports
1 x USB 2.0 Type C port

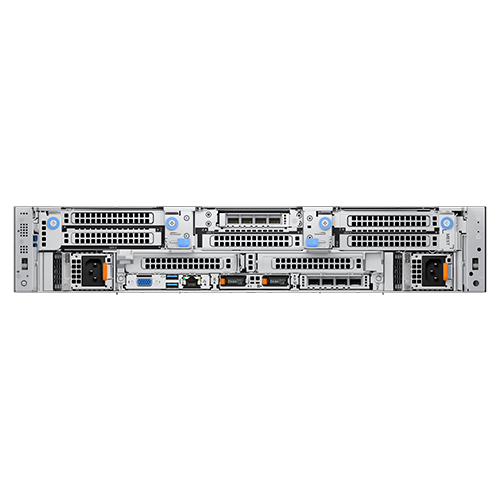

Rear Ports
1 x Dedicated ethernet port for iDRAC management
1 x VGA
2 x USB 3.1 Type A ports
Internal Ports
1 x USB 3.1 Type A port
Slots
PCIe
Up to five x16 Gen5 PCIe slots
Slot 2 -1 x16 Gen5 (x16 connector) full height, half length
Slot 3 -1×16 Gen5 (x16 connector) full height/low profile, half length
Slot 5 -1 x16 Gen5 (x16 connector) full height, half length
Slot 7 -1 x16 Gen5 (x16 connector) full height, half length
Slot 9 -1×16 Gen5 (x16 connector) full height/low profile, half length
OCP Network options
Up to two OCP NIC card 3.0 (optional)
Bezel
Optional security bezel
Form Factor
2U rack server
Dimensions & Weight
Height
3.42 in. (86.80 mm)
Width
19.00 in. (482.00 mm)
Depth (for rear I/O configuration)
31.59 in. (802.40 mm) with bezel
31.56 in. (801.51 mm) without bezel
Weight
Max 64.59 lb (29.30 kg)
Rack Support
ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks
Combo (Drop-in/Stab-in) rails with optional CMA and SRB for 4-post racks.
ReadyRails static rails for 4-post and 2-post racks.
Blind Mate Power ReadyRails (static, stab-in) for systems with front I/O configuration
