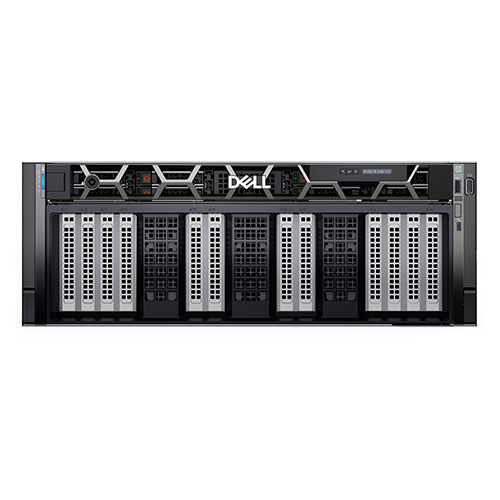

Dell PowerEdge XE9680L
Model: PowerEdge XE9680L
Tech Specs
Processor
Two 5th Generation Intel™ Xeon™ Scalable processors with up to 64 cores per processor
Cooling options
Liquid cooled CPUs, GPUs, and NVLink Switches
Operating System
Canonical Ubuntu Server LTS
Chipset
Intel® C741 chipset
Accelerators
8 x NVIDIA HGX H200 141GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology**
8 x NVIDIA HGX B200 180GB 1000W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology
** Note: The NVIDIA HGX H200 GPU is available post-RTS.
Memory
DIMM Speed
Up to 5600 MT/s on the 5th Generation Intel® Xeon Scalable processors at 1 DPC
Up to 4400 MT/s on the 5th Generation Intel® Xeon Scalable processors at 2 DPC
Memory Type
RDIMM
Memory Module Slots
32 DDR5 DIMM slots
Maximum RAM
RDIMM 4 TB max
Storage
Front Bays
Up to 8 x 2.5-inch NVMe drives max 122.88 TB
Storage Controllers
Internal Boot
Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs
Internal controllers
NA
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified
Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Consoles
CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
Tools
Dell System Update
Dell Repository Manager
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
OpenManage Integrations
BMC Truesight
OpenManage Integration with ServiceNow
Terraform Providers
Red Hat Ansible Modules
Power Supplies
2800W Titanium 200-240 VAC or 240 VDC, hot swap redundant
3000W Titanium 200-240 VAC or 240 VDC, hot swap redundant for B200 GPU
Fans
Up to six high performance (HPR) gold grade fans installed on the top layer
Up to six high performance (HPR) gold grade fans installed on the bottom layer of the system
Ports
Network Options
1 x OCP 3.0 (x8 PCIe lanes)
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA
Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x iDRAC Direct ethernet port
Slots
PCIe
Up to 12 x16 Gen5 (x16 PCIe) full-height, half-length
Bezel
Optional LCD bezel or security bezel
Dimensions & Weight
Height
174.3 mm (6.86″)
Width
Upper 2U: 447 mm (17.59″)
Lower 2U: 434 mm (17.08″)
Depth
1037.57 mm (40.82″) with bezel
1025.62 mm (40.37″) without bezel
Weight
Up to 210.76 lbs (95.6 kgs)
