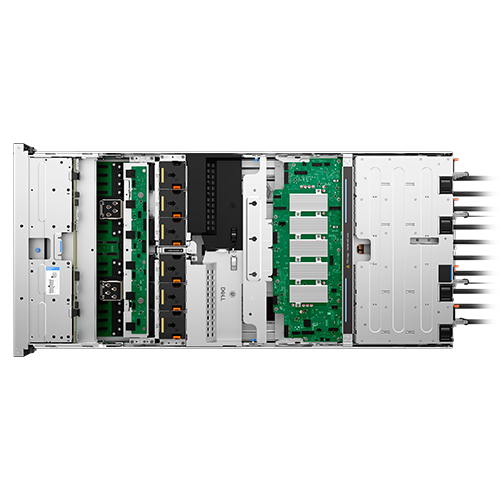

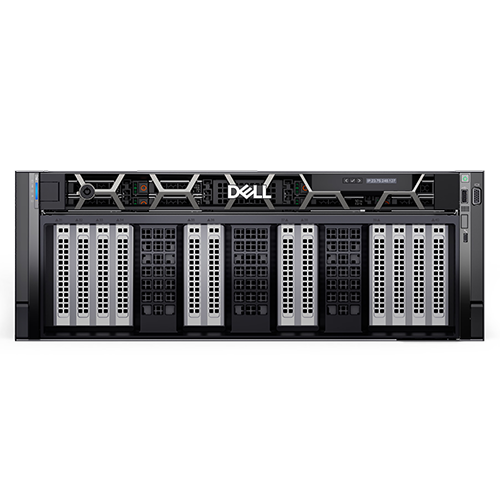

Dell PowerEdge XE9685L
Model: PowerEdge XE9685L
Tech Specs
Processor
Two AMD EPYC™ 9005 Series processors with up to 192 cores per processor
Cooling options
Liquid cooled CPUs, GPUs, and NVLink Switches
Operating System
Canonical Ubuntu Server LTS
Accelerators
8 x NVIDIA HGX B200 180GB 1000W SXM6 GPUs, fully interconnected with NVIDIA NVLink technology
Memory
DIMM Speed
Up to 6400 MT/s
Memory Type
RDIMM
Memory Module Slots
24 DDR5 DIMM slots
Maximum RAM
RDIMM 3 TB max
Storage
Front Bays
Up to 8 x 2.5-inch NVMe drives max 122.88 TB
Storage Controllers
Internal Boot
Boot Optimized Storage Subsystem (NVMe BOSS-N1) HWRAID 1: 2 x M.2 SSDs
Internal controllers
NA
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified
Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Consoles
OME APEX AIOps Observability
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
Tools
Dell System Update
Dell Repository Manager
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
OpenManage Integrations
OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers
Power Supplies
3000W Titanium 200-240 VAC or 240 VDC, hot swap redundant for B200 GPU
Fans
Up to six high performance (HPR) gold grade fans installed on the top layer
Up to six high performance (HPR) gold grade fans installed on the bottom layer of the system
Ports
Network Options
1 x OCP 3.0 (x8 PCIe lanes)
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

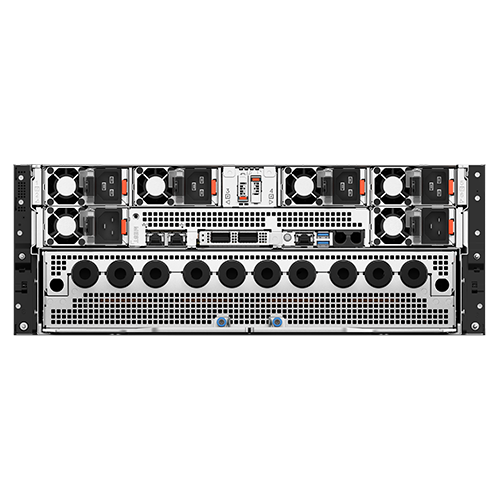

Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x iDRAC Direct ethernet port
Slots
PCIe
Up to 12 x16 Gen5 (x16 PCIe) full-height, half-length
Bezel
Optional LCD bezel or security bezel
Form Factor
4U rack server
Dimensions & Weight
Height
6.86 in. (174.3 mm)
Width
Upper 2U: 17.59 in. (447 mm)
Lower 2U: 17.08 in. (434 mm)
Depth
40.82 in. (1037.57 mm) with bezel
40.37 in. (1025.62 mm) without bezel
Weight
208.55 lbs. (Up to 94.6 kg)
Rack Support
Your system supports the Generic Tool-less stab-in sliding rail. The Generic Tool-less stab-in sliding rail supports tool-less installation in 19″ EIA-310-E compliant square hole and unthreaded round hole 4-post racks. It allows for the partial extension of the system out of the rack, enabling serviceability of key internal components.
