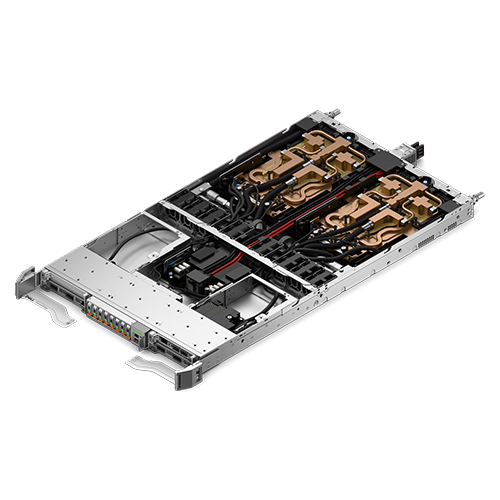

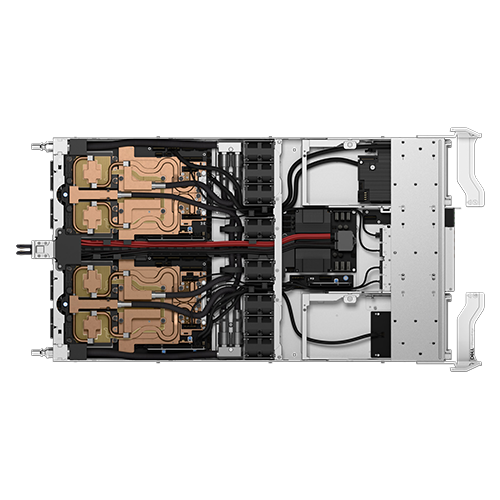

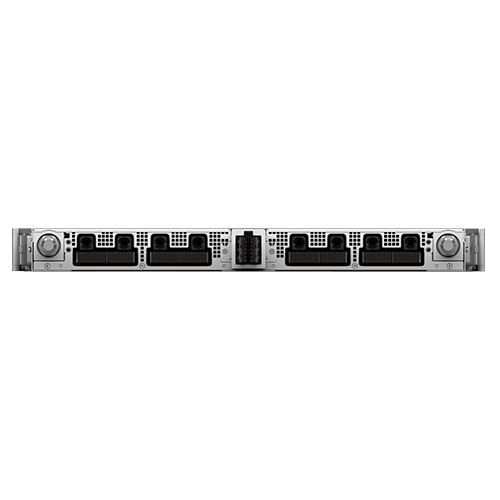

Dell PowerEdge XE9712
Model: PowerEdge XE9712
Tech Specs
Processor
Two NVIDIA Grace with 72 cores per processor
Operating System
Grace OS
Accelerators
4 Blackwell Ultra GPU’s
900GB/s of coherent memory through NVLINK CPU-GPU interconnect
Memory
DIMM Speed
Up to 5200 MT/s
Memory Type
LP DDR5X memory with error-correction code (ECC)
Memory Module Slots
NA
Maximum RAM
• 480 GB of LP DDR5 memory with error-correction code (ECC) / CPU
• 288 GB HBM3e / GPU
Storage
Front Bays
Up to 8 x EDSFF E1.S hot-swappable NVMe drives
Storage Controllers
Boot Drives
1 x M.2 Boot
Management
Embedded
Aspeed AST2600 BMC DC-SCI compatible
OpenBMC
Power Supplies
IR9048 rack consists of Power Shelf 33kW (PS33) that supports 6 x 5500 W AC PSUs
PS33 supplies up to 54 VDC to the XE9712 through Power bus bar located on IR9048 rack
Fans
Eight standard cooling fans
Cooling specifications
Air cooling
Direct Liquid Cooling (DLC)
Ports
Network Options
1x 1GbE LOM

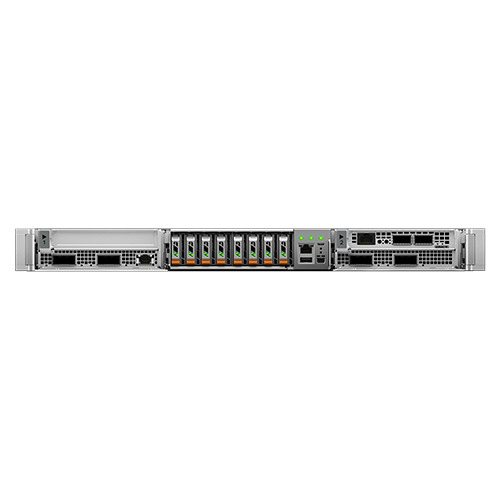

Front Ports
1x USB3
1x RJ45 Mgmt LAN
1x miniDP
1x USB2.0 Micro Type-B
1x 1Gb LOM
Slots
PCIe
Up to 2 x FH HL Gen5, front risers only
2 x Mezzanine – Gen5/Gen6
PCIe Cards
1 x BF3 SuperNIC Full Height Half Length
Form Factor
IR9048 is a 48 RU (Rack Units) rack
Each XE9712 sled is 1 RU
Note: 1 RU = 1.75 in. (44.45 mm) height, and 9 in.(438 mm) width.
Dimensions & Weight
Height
90.3″ (2294 mm)
Width
29.52″ (750 mm)
Depth
47.24″ (1200 mm)
57.75″ (1340 mm) with stablizers
Cabinet wet weight
3505.35 pounds (1590 kg)
Rack Support
IR9048 is a 48 RU (Rack Units) rack
Each XE9712 sled is 1 RU
Note: 1 RU = 1.75″ (44.45 mm) height, and 19″ (482.6 mm) width.
