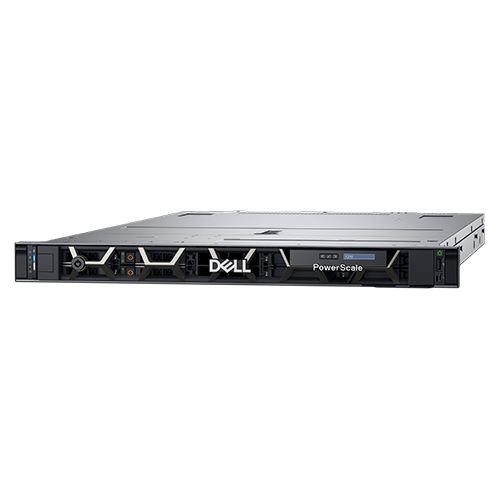

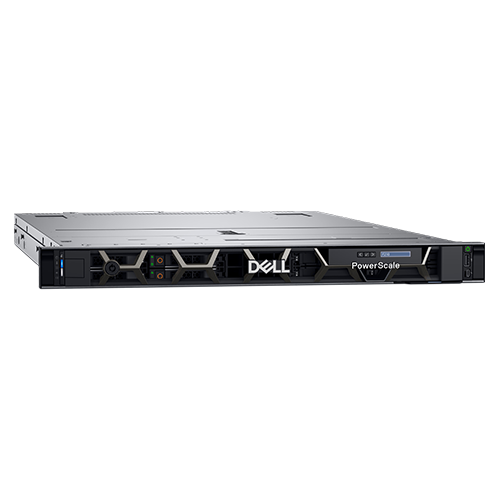

Dell PowerScale F210 All-Flash NAS Platforms
Model: PowerScale F210
Tech Specs
Processor
2 Intel® Xeon® CPUs, 2GHz/10C
Functional
All-flash, all-NVMe NAS
Scale-out storage
Memory
128 GB DRAM DDR5 ECC
System Overview
Base enclosure
1U Form Factor
4×2.5” NVMe SSD drives
Expansion Capacity
Scale-out architecture
Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.
Expansion enclosures
Minimum cluster size: 3 nodes
Maximum cluster size: 252 nodes
Connectivity
Front End Networking (per node):
Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28)
Dual port 100G NIC supporting 40G or 100G connections
Infrastructure Networking (per node):
Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28)
Dual port 100G NIC supporting 40G or 100G connections (QSFP+/QSFP28)
Software
OneFS 9.2.1 or later. Upgrades are non-disruptive
PowerScale OneFS distributed file system creates a cluster with a single file system and single global namespace. It is fully journaled, fully distributed, and has a globally coherent write/read cache.
Data Optimization
Efficiency
SmartDedupe data deduplication option, which can reduce storage requirements by up to 35 percent. Inline data reduction and compression.
2:1 DRR guarantee
Network protocol support
NFSv3, NFSv4, NFSoRDMA, NFS Kerberized sessions (UDP or TCP), SMB1 (CIFS), SMB2, SMB3, SMB3-CA, Multichannel, HTTP, FTP, NDMP, SNMP, LDAP, HDFS, S3, ADS, NIS reads/writes.
Automated storage tiering
Policy-based automated tiering options including SmartPools and CloudPools software to optimize storage resources and lower costs.
Data retention
SmartLock policy-based retention and protection against accidental deletion.
Data replication
SyncIQ fast and flexible one-to-many file-based asynchronous replication between clusters. SmartSync provides efficient file to file and file to object data movement.
Data Protection
FlexProtect file-level striping with support for N+1 through N+4 and mirroring data protection schemes.
File system audit capability and STIG hardening to improve security and control of your storage infrastructure and address regulatory compliance requirements, with our Cyber Protection Suite.
Security
Data at Rest Encryption with External Key Manager​
Data in flight encryption​
Role-Based Access Control (RBAC)​
Multi-factor authentication​
Secure Boot​
Auditing​
Anti-Virus
Physical
Base unit
1U Form Factor
Height: 42.8 mm / 1.68 in.
Width: 482 mm / 18.97 in.
Depth: 822.88 mm / 32.39 in. (with bezel)
Weight: 20.3 kg / 44.8 lb
Power
800 W
Dual redundant power supplies
Max Power consumption
(200-240V per node)
@25°C – 286 Watts
@35°C – 309 Watts
Typical Thermal rating:
@25°C – 975 BTU/hr
@35°C – 1054 BTU/hr
