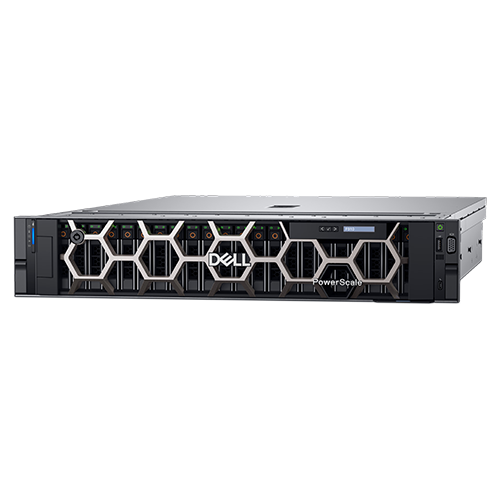

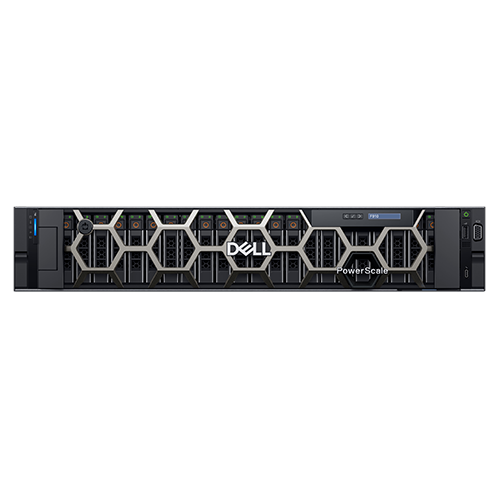

Dell PowerScale F910 All-Flash NAS Platform
Model: PowerScale F910
Tech Specs
Processor
2 Intel® Xeon® CPUs, 2.6GHz/24C
Functional
All-flash, all-NVMe NAS
Scale-out storage
Memory
512 GB DRAM DDR5
System Overview
Base enclosure
2U Form Factor
24×2.5” NVMe SSD drives
Expansion Capacity
Scale-out architecture
Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.
Expansion enclosures
Minimum cluster size: 3 nodes
Maximum cluster size: 252 nodes
Connectivity
Front End Networking (per node):
Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28)
Dual port 100G NIC supporting 40G or 100G connections
Infrastructure Networking (per node):
2 InfiniBand connections with QDR links or Dual port 100G NIC supporting 40G or 100G connections (QSFP+/QSFP28)
Media Types
NVMe SSDs
3.84 TB (TLC)
7.68 TB (TLC)
15.36 TB (QLC)
30.72 TB (QLC)
Software
OneFS 9.2.1 or later. Upgrades are non-disruptive
PowerScale OneFS distributed file system creates a cluster with a single file system and single global namespace. It is fully journaled, fully distributed, and has a globally coherent write/read cache.
Data Optimization
Efficiency
SmartDedupe data deduplication option, which can reduce storage requirements by up to 35 percent. Inline data reduction and compression.
2:1 DRR guarantee
Network protocol support
NFSv3, NFSv4, NFSoRDMA, NFS Kerberized sessions (UDP or TCP), SMB1 (CIFS), SMB2, SMB3, SMB3-CA, Multichannel, HTTP, FTP, NDMP, SNMP, LDAP, HDFS, S3, ADS, NIS reads/writes.
Automated storage tiering
Policy-based automated tiering options including SmartPools and CloudPools software to optimize storage resources and lower costs.
Data retention
SmartLock policy-based retention and protection against accidental deletion.
Data replication
SyncIQ fast and flexible one-to-many file-based asynchronous replication between clusters. SmartSync provides efficient file to file and file to object data movement.
Data Protection
FlexProtect file-level striping with support for N+1 through N+4 and mirroring data protection schemes.
File system audit capability and STIG hardening to improve security and control of your storage infrastructure and address regulatory compliance requirements, with our Cyber Protection Suite.
Security
Data at Rest Encryption with External Key Manager​
Data in flight encryption​
Role-Based Access Control (RBAC)​
Multi-factor authentication​
Secure Boot​
Auditing​
Anti-Virus
Physical
Base unit
2U Form Factor
Height: 86.8 mm / 3.41 in.
Width: 482 mm / 18.97 in.
Depth: 772.13 mm / 30.39 in. with bezel
Weight: 32.75 kg / 72.2 lbs.
Power
1400 W
Dual redundant power supplies
Max Power consumption
(200-240V per node)
@25°C – 877 Watts
@35°C – 913 Watts
Typical Thermal rating:
@25°C – 2992 BTU/hr
@35°C – 3115 BTU/hr
Regulatory
Dell Information Technology Equipment is compliant with all currently applicable regulatory requirements for Electromagnetic Compatibility, Product Safety, and Environmental Regulations where placed on market. Detailed regulatory information and verification of compliance is available at the Dell Regulatory Compliance website.
Certifications
US Department of Defense:  DoDIN APL – in process
Common Criteria EAL2 – in process
IPv6 USGv6-R1 certification – in process
Energy Star Certification – In process
