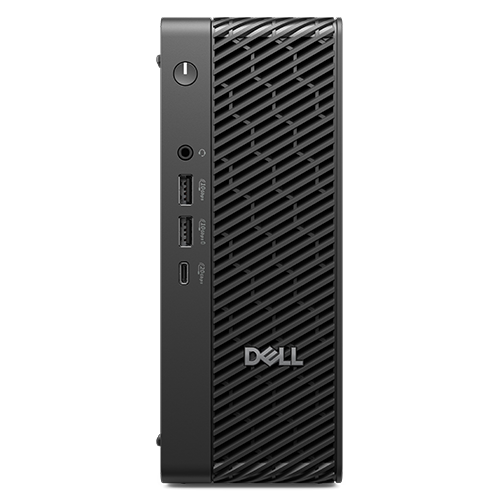

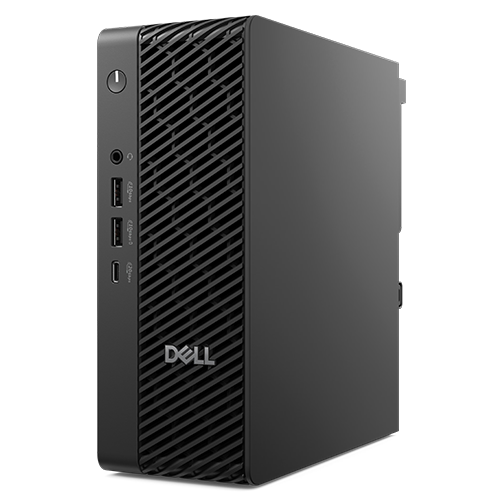

Dell Pro Max Micro Desktop (FCM2250)
Model: FCM2250
Tech Specs
Processor
Intel® Core™ Ultra 7 265 (30 MB cache, 20 cores, 20 threads, 1.8 GHz to 5.3 GHz, 65W)
Operating System
(Dell Technologies recommends Windows 11 Pro for business)
Windows 11 Pro
Graphics Card
NVIDIA® RTX™ A1000, 8 GB GDDR6, 4 mDP to DP adapters
Memory
32GB: 1 x 32 GB, DDR5, 5600 MT/s, non-ECC
Storage
512 GB, M.2 2280, TLC PCIe Gen4, SSD, SED Ready
Microsoft Office
Activate Your Microsoft 365 For A 30 Day Trial
Home and Small Business Security Solutions
None
Hardware Support Services Upgrades
Basic Onsite Service after remote diagnosis with Hardware-Only Support, 36 Month(s)
Accidental Damage Service
None
Keyboard
Dell Pro Compact Silent Keyboard and Mouse – KM555 – US English
Ports
Front:
1 USB 3.2 Gen 2×2 (20 Gbps) Type-C® port
1 USB 3.2 Gen 2 (10 Gbps) with PowerShare port
1 USB 3.2 Gen 2 (10 Gbps) port
1 headset (headphone and microphone combo) port

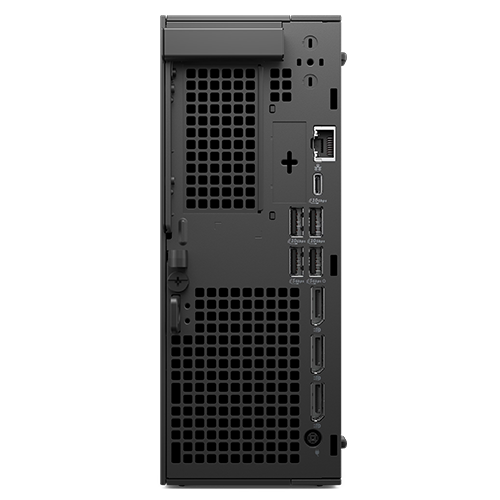

Rear:
1 USB 3.2 Gen 2 (10 Gbps) Type-C® port
2 USB 3.2 Gen 2 (10 Gbps) ports
1 USB 3.2 Gen 1 (5 Gbps) port with Smart Power On
1 USB 3.2 Gen 1 (5 Gbps) port
3 DisplayPort 1.4a (HBR3 support) ports
1 RJ45 (10/100/1000 Mbps) Ethernet port
1 power-adapter port
1 optional module port (VGA/HDMI 2.1 FRL/DisplayPort™ 2.1 (UHBR20)/Serial/PS2/USB Type C® with DisplayPort™ Alt Mode/2 USB Type-A/Thunderbolt 4 + USB Type-C®/5G Optical Fiber/5GbE LAN NIC)
Slots
1 Kensington security-cable slot
1 Padlock ring
2 PCIe Gen4 x8 slot (x8 and x1 electrically)
1 M.2 2280 Gen4 PCIe NVMe single-sided SSD
1 M.2 2280 Gen5 PCIe NVMe single-sided SSD
1 M.2 2230 slot for Wi-Fi and Bluetooth card
Dimensions & Weight
Height: 8.11 in. (206 mm)
Width: 3.12 in. (79.30 mm)
Depth: 7.00 in. (178 mm)
Weight (maximum): 5.59 lb (2.54 kg)
Weight (minimum): 5.15 lb (2.34 kg)
Camera
No camera
Audio and Speakers
Stereo speakers with Realtek ALC3204 Codec Audio Controller
Internal speakers
Chassis
Dell Pro Max Micro Chassis
Wireless
No Wireless LAN Card
Power
180 W AC adapter, 7.4mm barrel
280 W AC adapter, 7.4mm barrel
