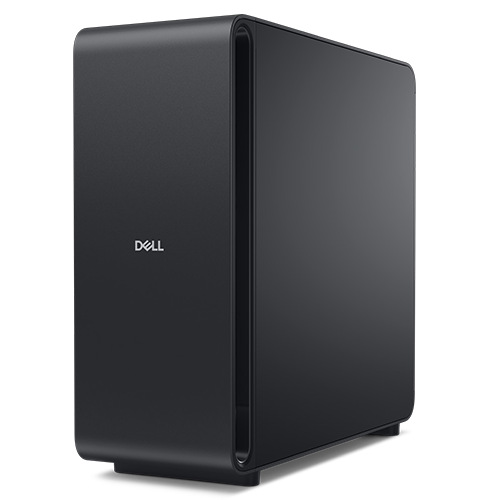

Dell Pro Max with GB300 (FCT6263)
Model: FCT6263
Tech Specs
Processor
NVIDIAĀ® Graceā¢ 72 Core Neoverseā¢ V2
Operating System
UbuntuĀ® 24.04 LTS with NVIDIAĀ® AI Developer Tools
Graphics Card
Discrete Graphics:
NVIDIAĀ® DGX B300, 252 GB HBM3e (onboard)
NVIDIAĀ® RTXā¢ PRO 2000-Blackwell, 16 GB GDDR7 (PCIe card)
Memory
748 GB coherent memory
GPU: 252 GB HBM3e
System memory: 496 GB, LPDDR5X, 6400 MT/s, SOCAMM
Storage
16 TB: (4 x 4 TB), SSD, Gen4, SED Ready
Microsoft Office
None
Security Software
None
Support Services
1Y Basic Hardware Service with onsite service after remote diagnosis
2Y Basic Hardware Service with onsite service after remote diagnosis
3Y Basic Hardware Service with onsite service after remote diagnosis
1Y ProSupport with Next Business Day Onsite Service
2Y ProSupport with Next Business Day Onsite Service
3Y ProSupport with Next Business Day Onsite Service
1Y ProSupport Plus for Client with Next Business Day Onsite Service
2Y ProSupport Plus for Client with Next Business Day Onsite Service
3Y ProSupport Plus for Client with Next Business Day Onsite Service
1Y Keep Your Hard Drive
2Y Keep Your Hard Drive
3Y Keep Your Hard Drive
Accidental Damage Protection (ADP)
Included in ProSupport Plus
Ports
Top Ports
2 USB 3.2 Gen 2 (10 Gbps) ports
2 USB 3.2 Gen 2 (10 Gbps) Type-CĀ® ports

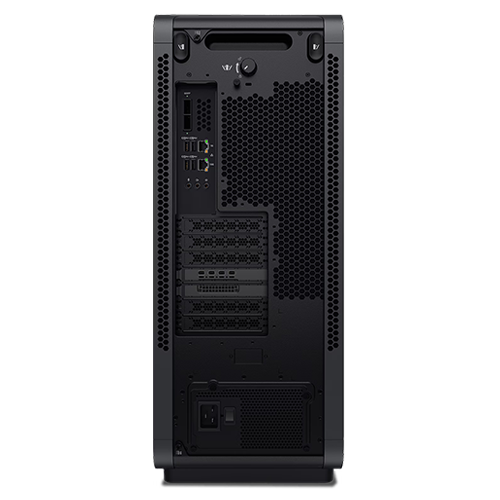

Rear Ports
2 QSFP112 (400 Gbps) ports
4 USB 3.2 Gen 2 (10 Gbps) ports
1 RJ45 Ethernet port, 1 GbE
1 RJ45 Ethernet port, 10 GbE
1 line-out port
1 line-in port
1 audio input/microphone port
Slots
1 Kensington security-cable slot
Dimensions & Weight
Height (rear): 569.00 mm (22.40 in.)
Height (front): 569.00 mm (22.40 in.)
Width: 231.60 mm (9.12 in.)
Depth: 610.50 mm (24.04 in.)
Weight (maximum): 38.67 kg (85.25 lb)
Audio and Speakers
Onboard, Realtek high-performance Audio chip ALC4080
Chassis
Main chassis: Dell standard black powder-coated metal
Left and right door: Magnetite painted metal
Top, front, and bottom cover: Magnetite painted resin
Wireless
Not applicable
Power
1600 W Titanium internal power supply unit (C19 inlet)
